Product Overview

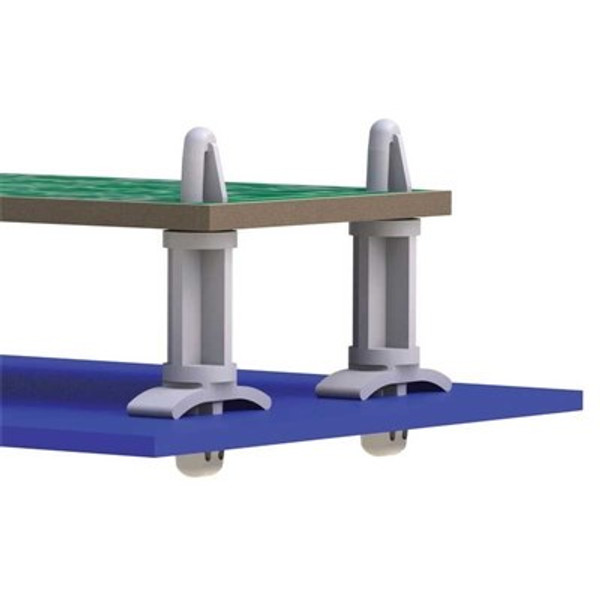

The PCB Spacer is made of UL94 V-2 Nylon has a Locking Bayonet for a 4.0 mm hole in a 1.8 mm panel on one side and a Locking Arrowhead in a 2.0 mm panel on the opposite side. Spacers lengths from 6.4mm to 19.1mm.
Other types and sizes available on request.
Spacer Length: 6.4 mm
Hole A Fix Type: Locking Bayonet
Hole B Fix Type: Locking Arrowhead
Hole Diameter A: 4.0 mm
Hole Diameter B: 4.0 mm
Full Material: Nylon 6/6
Colour: Natural
Operating Temperature Range: -40 to 85 °C
Material Flammability Standard: UL94 V-2
Style: 1
Material: Nylon
