Product Overview

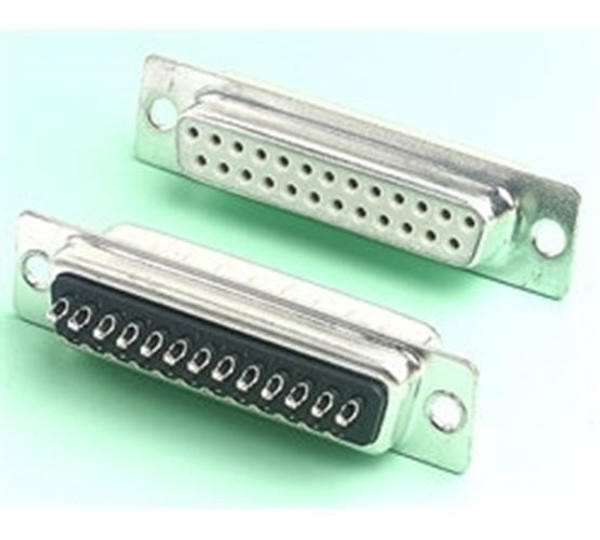

Pinrex 982-31 Series D Connectors - Panel Mounting
Superior quality commercial sub-miniature D connectors in 9 to 37 way contact versions,
with solder bucket terminals.
Flame retardant polyester insulator material.
Gold plated brass contact elements. Manufactured to MIL-C-24308 dimensional specification.
Tin plated dimpled steel shells ensure full grounding for EMI/RFI shielding.
| Contact rating: | 1 A |
| Dielectric strength: | 500 VAC |
| Insulation resistance: | 1000MΩ minimum at 500 VDC |
| Contact resistance: | 30mΩ max. at 100VDC |
| Temperature range: | -40°C to +105°C |
RoHS compliant
