Product Overview

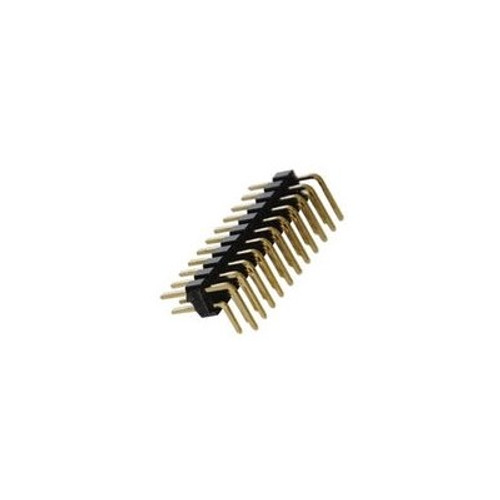

Square Dual Row Pin Headers suitable for use with Female Headers Housings and Jumper links. (order codes 710-240 to 710-250).
Double row pinout lengths from 2 way to 40 way easily cut into smaller lengths.
All pins are on a 2.54mm/0.1" spacing and the PCB connectors are end and side stackable.
Contact Rating: 3A
Insulation Resistance: 500MMin at DC 500v
Contact Resistance: 20mMax at DC 100mA
Operating Temperature: -40°C to 105°C
Contact Pin: Gold Plated Brass
Double row pinout lengths from 2 way to 40 way easily cut into smaller lengths.
All pins are on a 2.54mm/0.1" spacing and the PCB connectors are end and side stackable.
Contact Rating: 3A
Insulation Resistance: 500MMin at DC 500v
Contact Resistance: 20mMax at DC 100mA
Operating Temperature: -40°C to 105°C
Contact Pin: Gold Plated Brass
