Product Overview

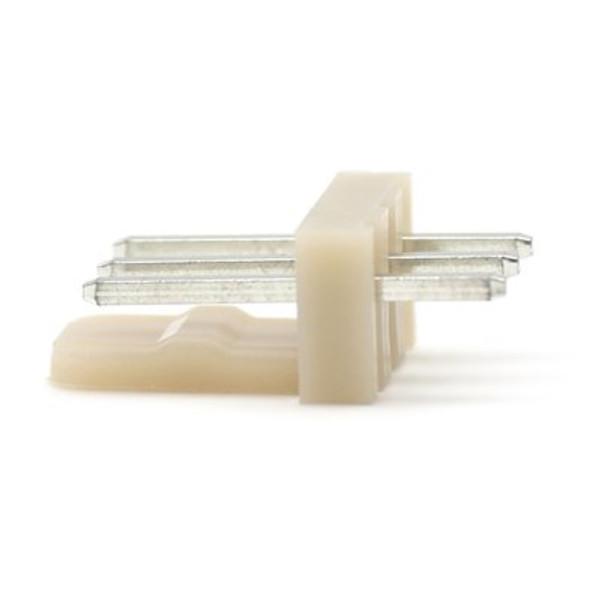

Modular 2.54mm (0.1") PCB connector system consisting of end-stackable socket connectors utilising crimp terminals and which mate with PCB mounting pin headers (straight or 90°).
The crimp terminals incorporate double cantilever contacts and the pin headers incorporate a friction lock.
Wire acceptance range AWG22-AWG30 (0.055-0.336mm)
Current Rating 3A
Housing: UL94V-2
The crimp terminals incorporate double cantilever contacts and the pin headers incorporate a friction lock.
Wire acceptance range AWG22-AWG30 (0.055-0.336mm)
Current Rating 3A
Housing: UL94V-2
RoHS compliant
